Price: $11.99
(as of Nov 28, 2024 19:47:30 UTC – Details)
Product Description

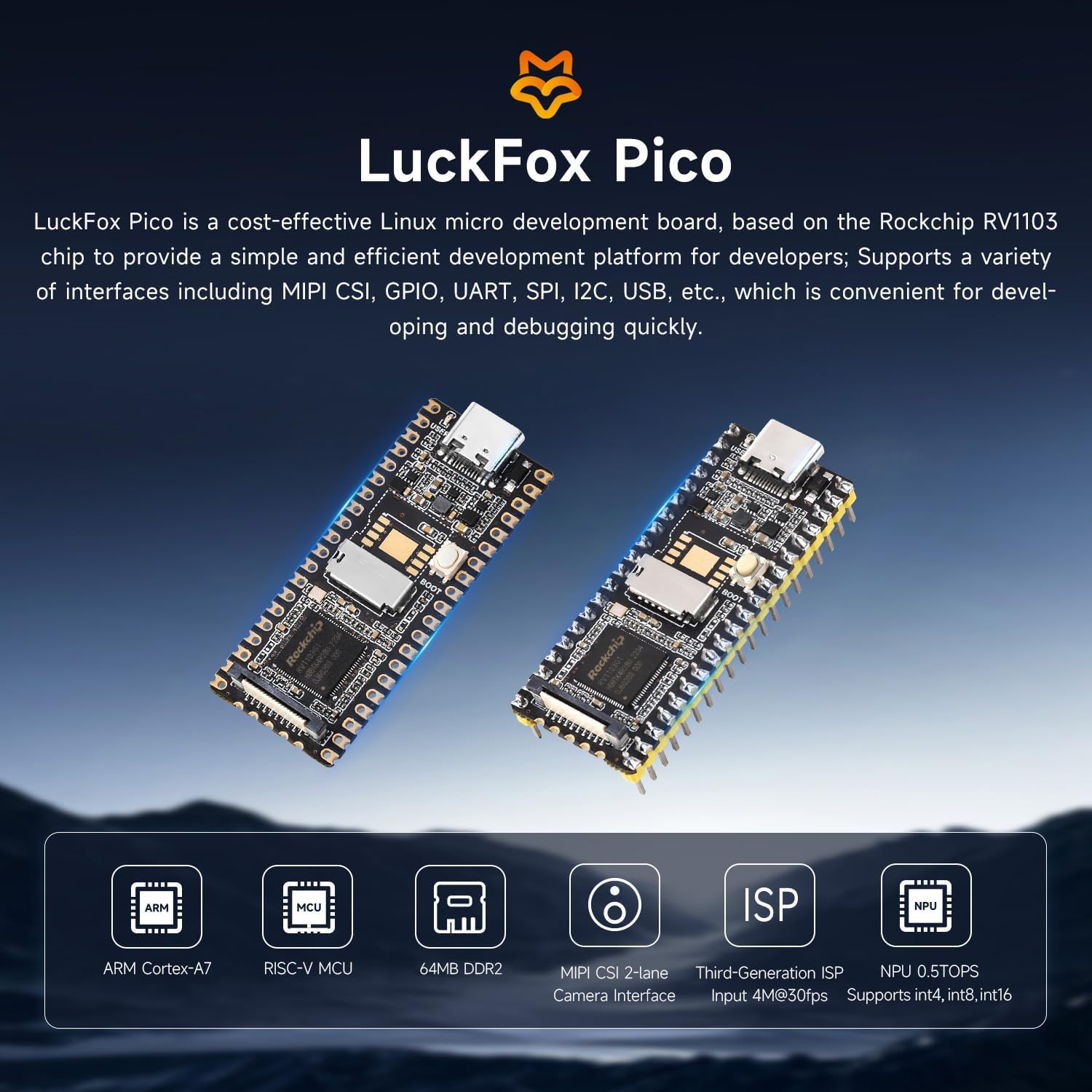

LuckFox Pico is a cost-effective Linux micro decelopment board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, 12I, USB, etc., which is convenient for developing and debugging quickly

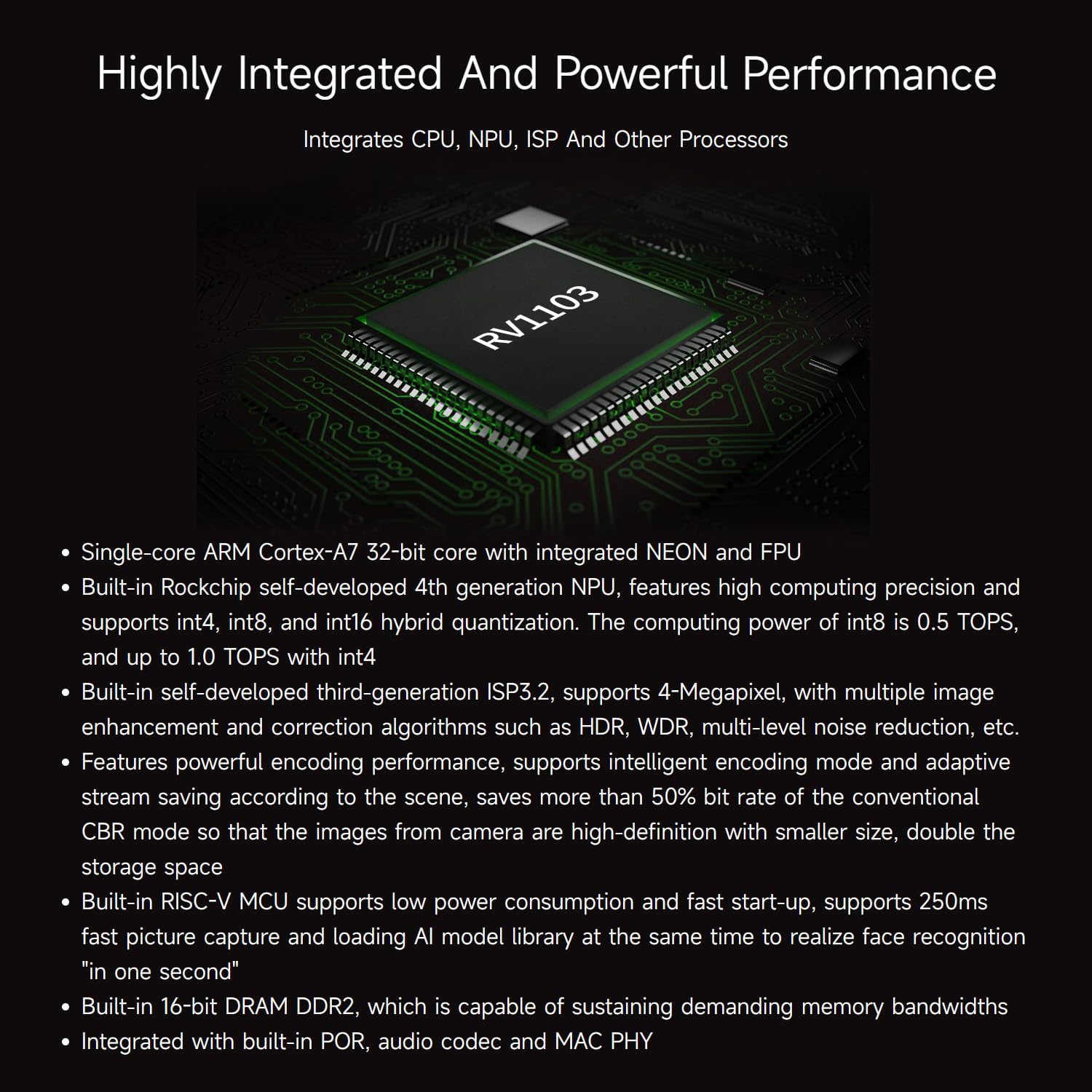

Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPUBuilt-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage spaceBuilt-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model library at the same time to realize face recognition “in one second”Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidthsIntegrated with built-in POR, audio codec and MAC PHY

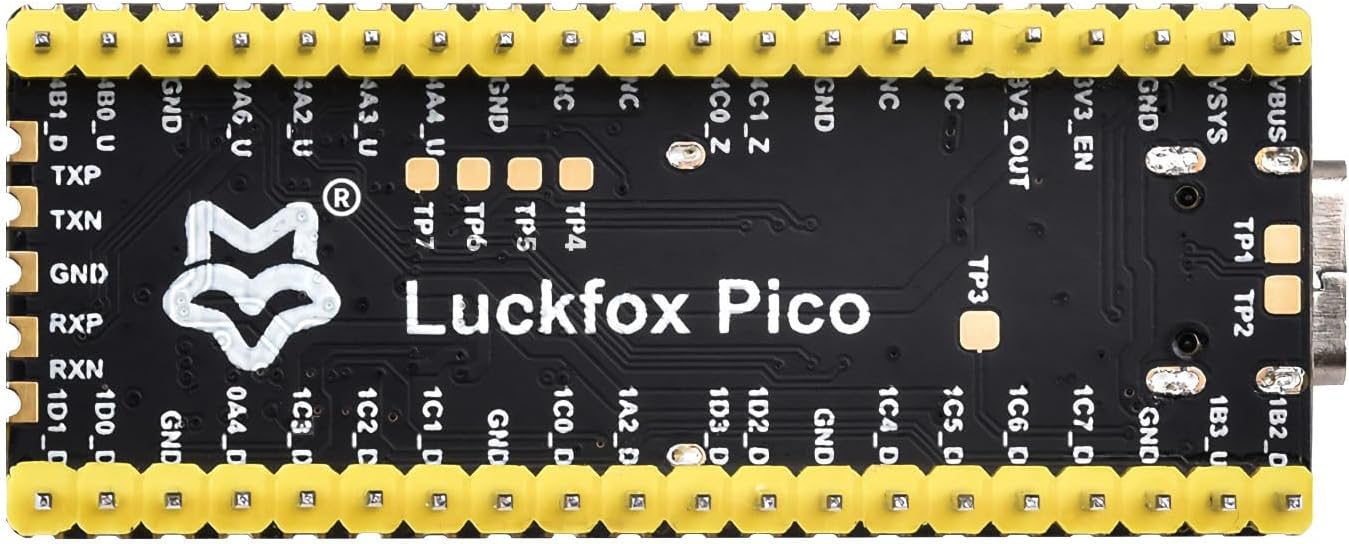

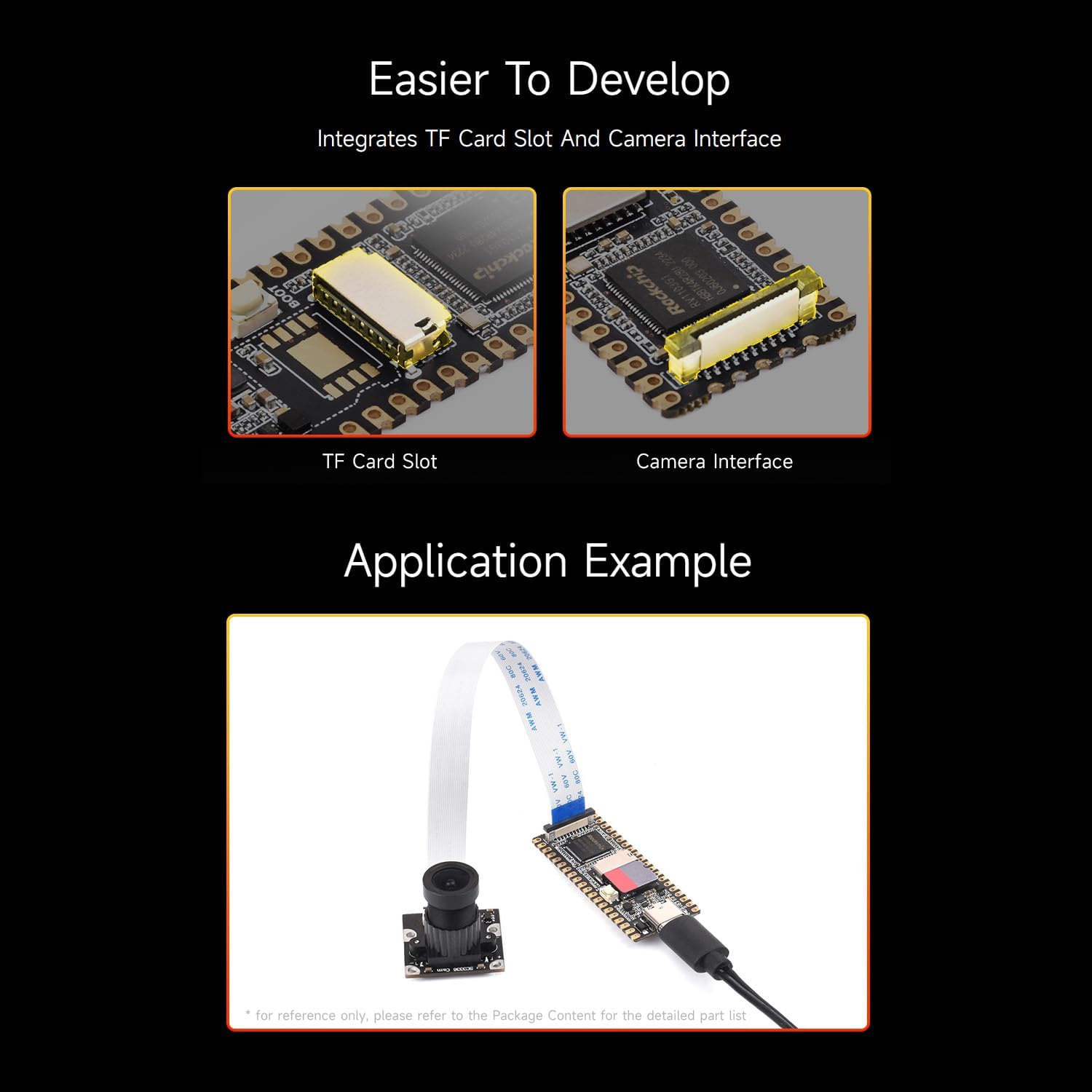

USB Type-C connectorACT-LEDBOOT button Press it when powering on to enter download modeTF card slotRV1103 Vision processor SoC with built-in ARM Cortex-A7 coreCSI camera interface MIPI CSI 2-laneGPIO headerUSB test padsBOOT test padMicrophone test padsEthernet interface pads
With yellow pre-soldered header. Luckfox Pico is a cost-effective Linux micro development board, based on the Rockchip RV1103 chip to provide a simple and efficient development platform for developers; Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, 12C, USB, etc., which is convenient for developing and debugging quickly.
Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU. Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size, double the storage space
Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading. AI model library at the same time to realize face recognition “in one second”. Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths. Integrated with built-in POR, audio codec and MAC PHY
