Product Description
It meets the needs of scientific research algorithm verification in various fields such as Lidar mapping, autonomous navigation, autonomous self driving, intelligent speech, target detection, face recognition, etc. It is not only compatible with the NVIDIA Jetbot open-source project program, but also is overall upgraded in hardware with better performance

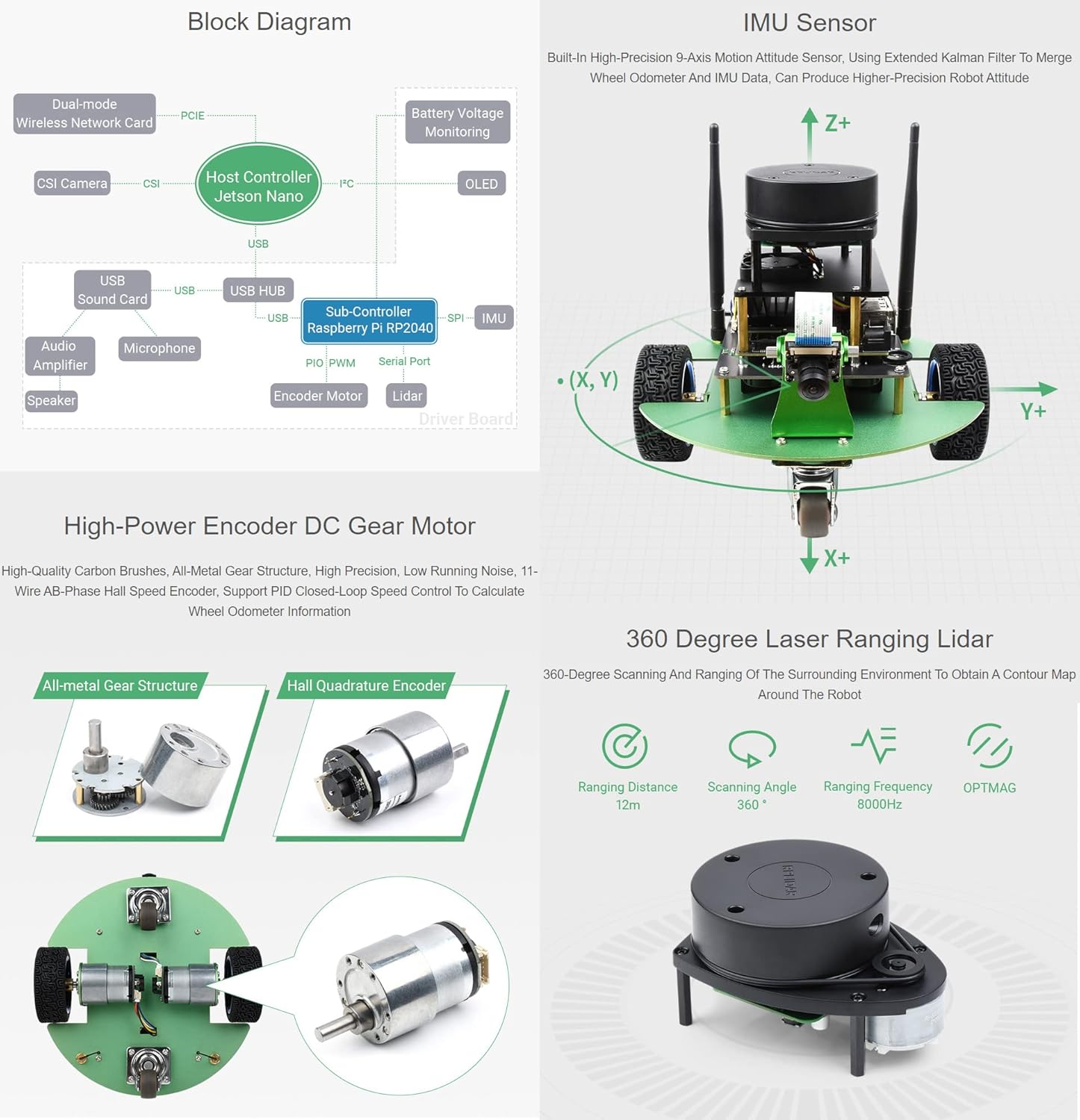

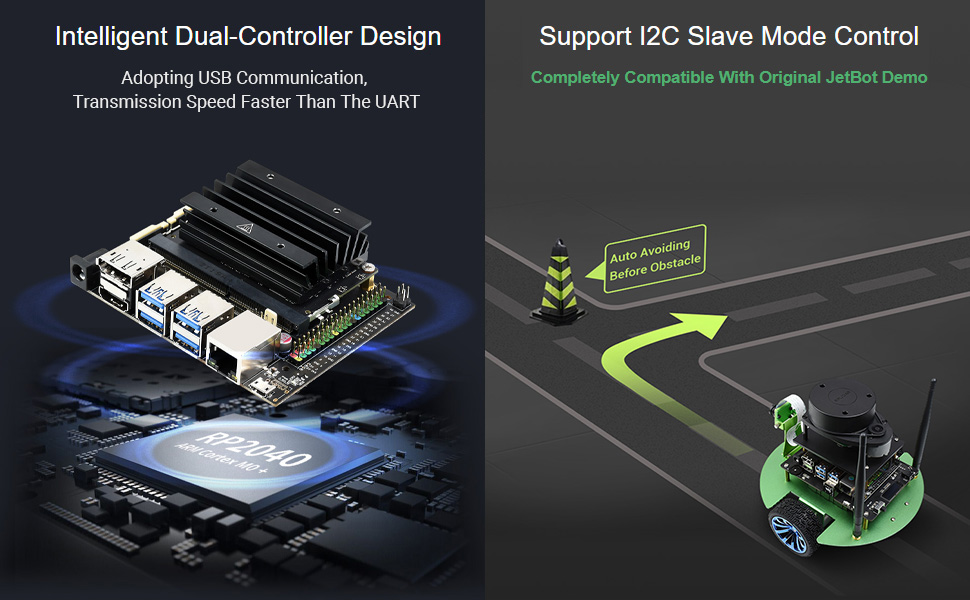

Intelligent Dual-Controller Design
The host controller adopts Waveshare Jetson Nano Kit, which is equipped with Jetson Nano Module 16GB eMMC version, 4GB memory and has better performance. This controller is responsible for Artificial Intelligence (AI), speech processing, visual processing, mapping and navigation, etc. The sub-controller uses the Raspberry Pi RP2040 dual-core microcontroller, which has better real-time performance and higher control accuracy, and is responsible for attitude data collection and motion control.
Adopting USB Communication, Transmission Speed Faster Than The UART

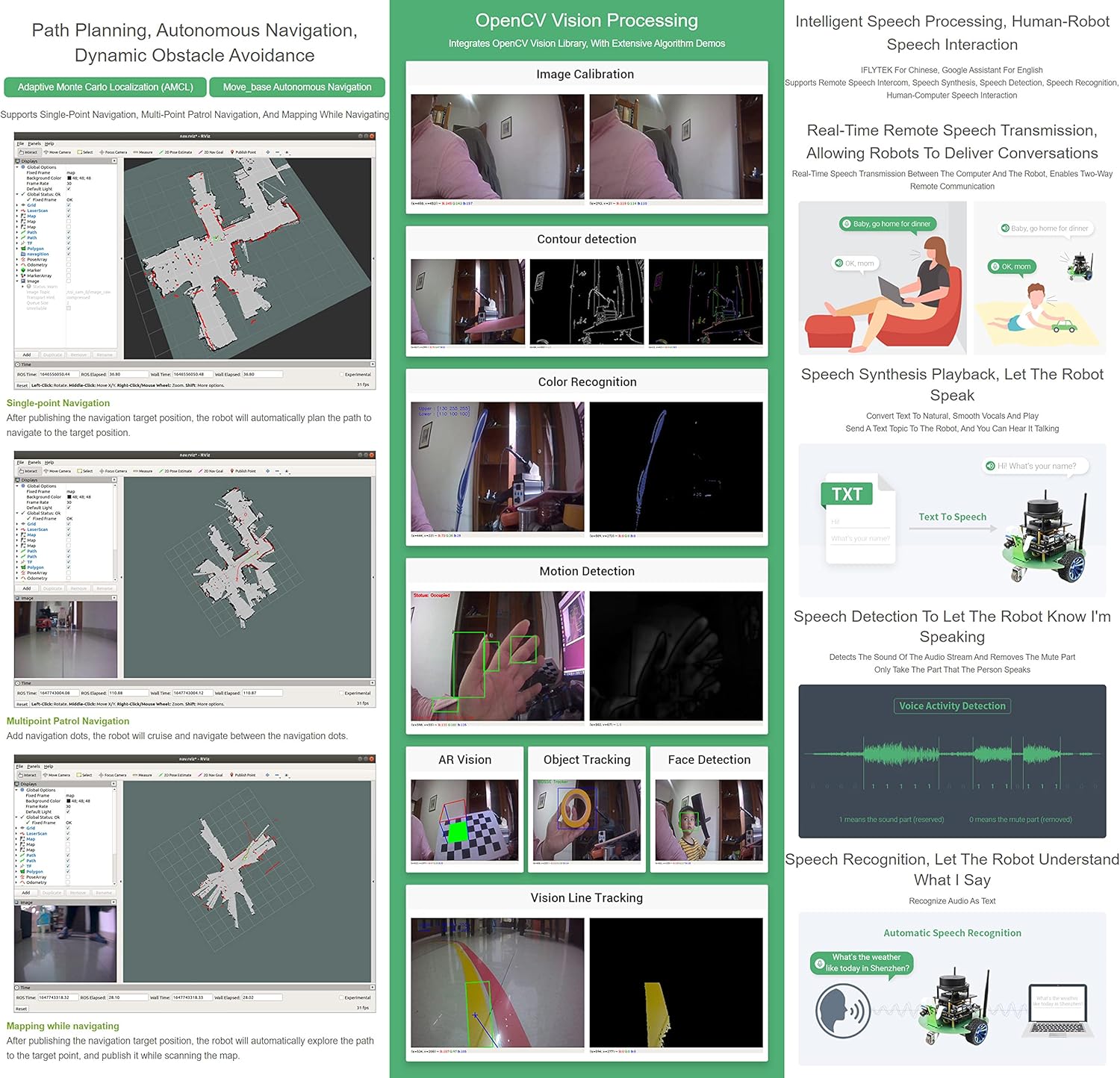

Single-point Navigation
After publishing the navigation target position, the robot will automatically plan the path to navigate to the target position.

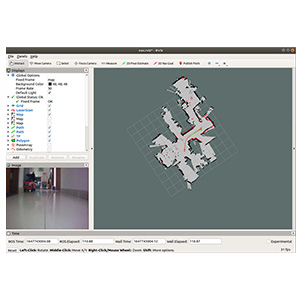

Multipoint Patrol Navigation
Add navigation dots, the robot will cruise and navigate between the navigation dots.
Mapping while navigating
After publishing the navigation target position, the robot will automatically explore the path to the target point, and publish it while scanning the map.
Real-Time Remote Speech Transmission, Allowing Robots To Deliver Conversations
Real-Time Speech Transmission Between The Computer And The Robot, Enables Two-Way Remote Communication

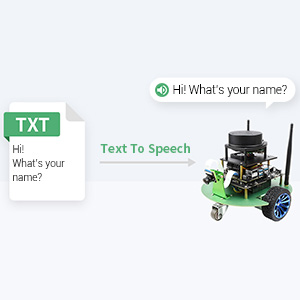

Speech Synthesis Playback, Let The Robot Speak
Convert Text To Natural, Smooth Vocals And Play Send A Text Topic To The Robot, And You Can Hear It Talking

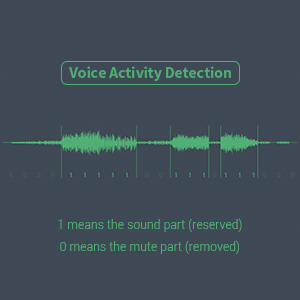

Speech Detection To Let The Robot Know I’m Speaking
Detects The Sound Of The Audio Stream And Removes The Mute Part Only Take The Part That The Person Speaks

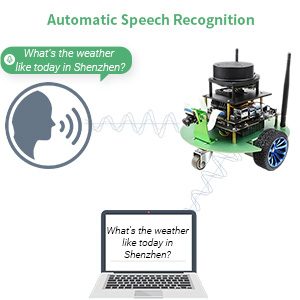

Speech Recognition, Let The Robot Understand What I Say
Recognize Audio As Text
This kit provides Jetson Nano Developer Kit (B01). Provide online user manual, please check the manual carefully before using!

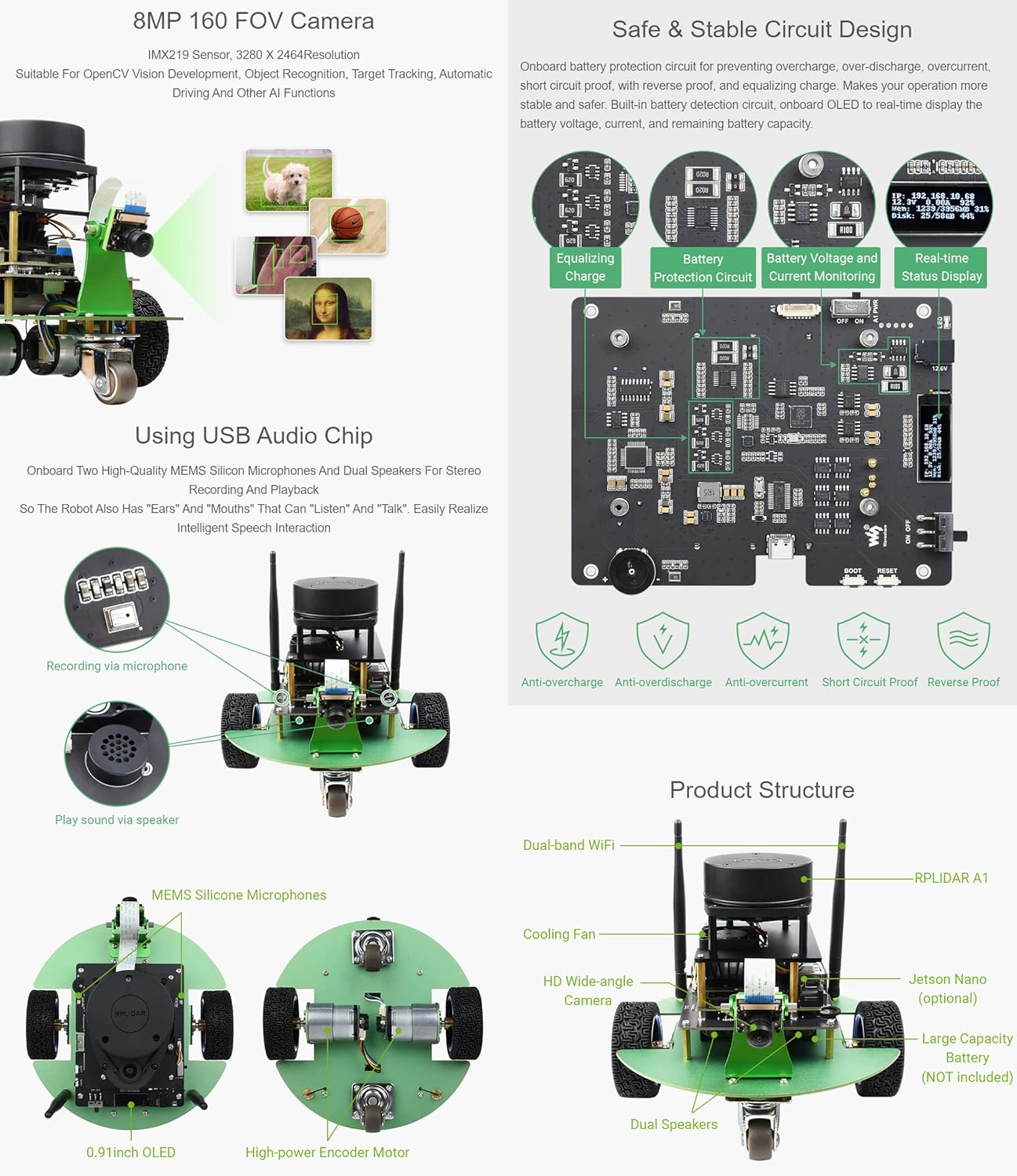

This product requires three 18650 batteries(NOT included) to work. Adopts 3x 18650 batteries, high battery capacity, up to 12.6V voltage output, more powerful driving force. Integrates S-8254AA + AO4407A lithium battery protection circuit, provides protections for over-charge, over-discharge, over-current, and short circuit. The power supply in this kit is for battery charging only, and will not power the Jetson Nano directly
Jetson Nano Developer Kit (B01) is the official kit with a variety of onboard interfaces including the 40PIN GPIO expansion header, Gigabit Ethernet port, USB 3.0 ports, HDMI port, DIS port and CSI camera connector, meet the needs of various applications.
8MP HD resolution, 160° FOV wide angle camera. AC8265 wireless NIC, 2.4G/5G dual-band WiFi, Bluetooth 4.2. 0.91″ 128×32 pixels OLED.
Please properly keep the Jetson products’ original packing box and accessories (if any) for warranty service, and the serial numbers on the product and packing box MUST be matched, otherwise, the original manufacturer will reject returning/repairing
