Price: $209.99
(as of Nov 05, 2024 15:24:48 UTC – Details)
Features:
- The panel of mecanum wheel car chassis is made of 3mm thick aluminum alloy board, which is strong and beautiful;
- Equipped with four 100mm mecanum omni wheels, the robot can perform front and rear, left turn, right turn, etc.;
- Equipped with 4 high torque DC encoder motors, it provides enough horsepower for the car chassis, and the chassis travels fast;
- This is an affordable omni wheel chassis car, which can be used for learning, racing DIY, etc.;
- The car can control the rotation and drift through Bluetooth, WiFi and handle control kits. It is a robot platform suitable for off-road competition.
- In order to facilitate transportation, the product is not assembled.

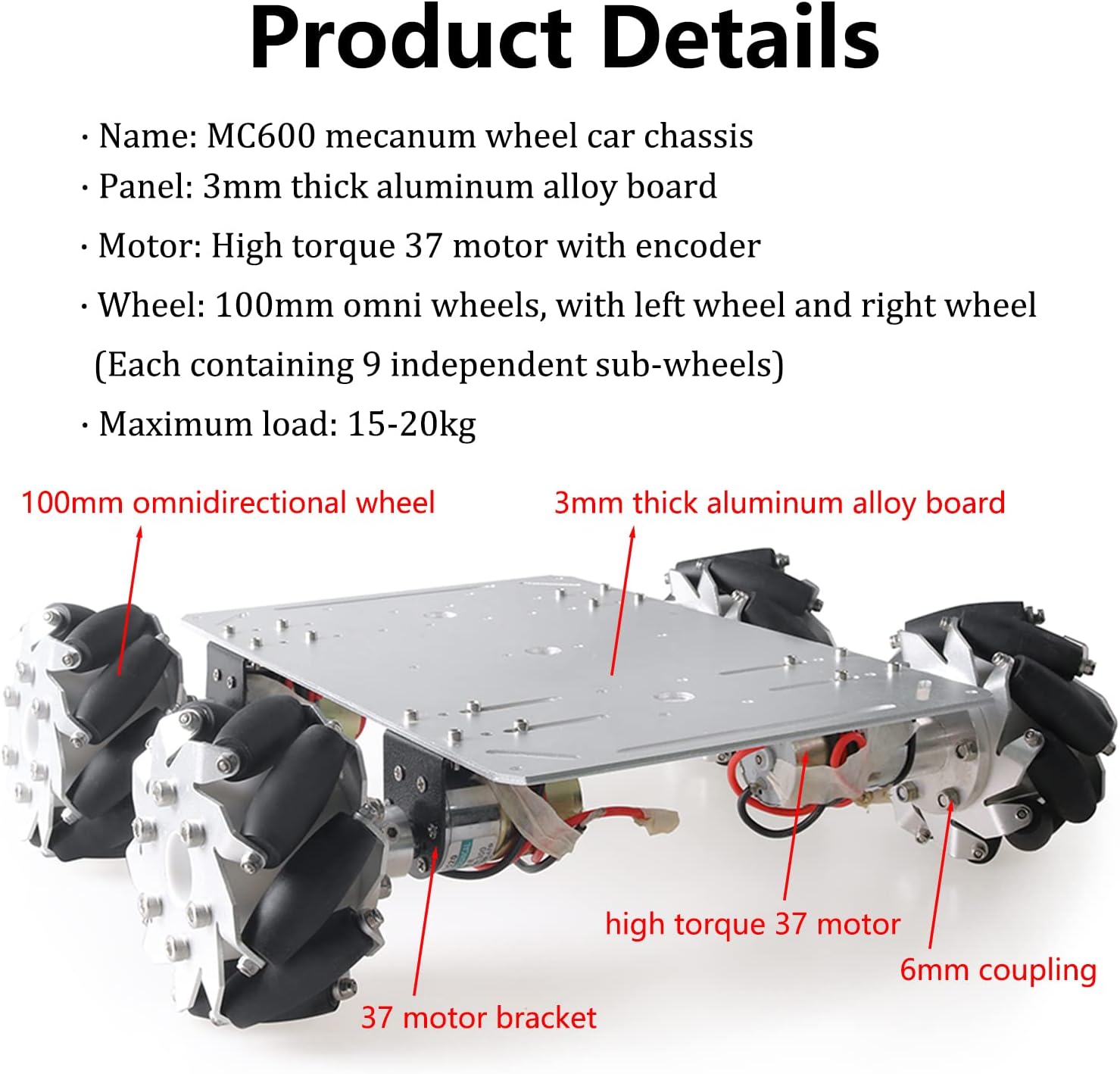

MC600 4WD Mecanum Wheel Car Chassis Parameters:
- Panel color: Silver
- Size: 37*30.2*10cm/ 14.6*11.9*3.9inch
- Weight: 3.2k/ 7.1lb
- Panel: 3mm thick aluminum alloy
- Surface treatment: Sandblasting oxidation
- Motor: High torque 37mm DC encoder motor
- Maximum load: 15-20kg
- Wheels: 100mm omnidirectional wheels, with left & right wheel, each containing 9 independent sub wheels

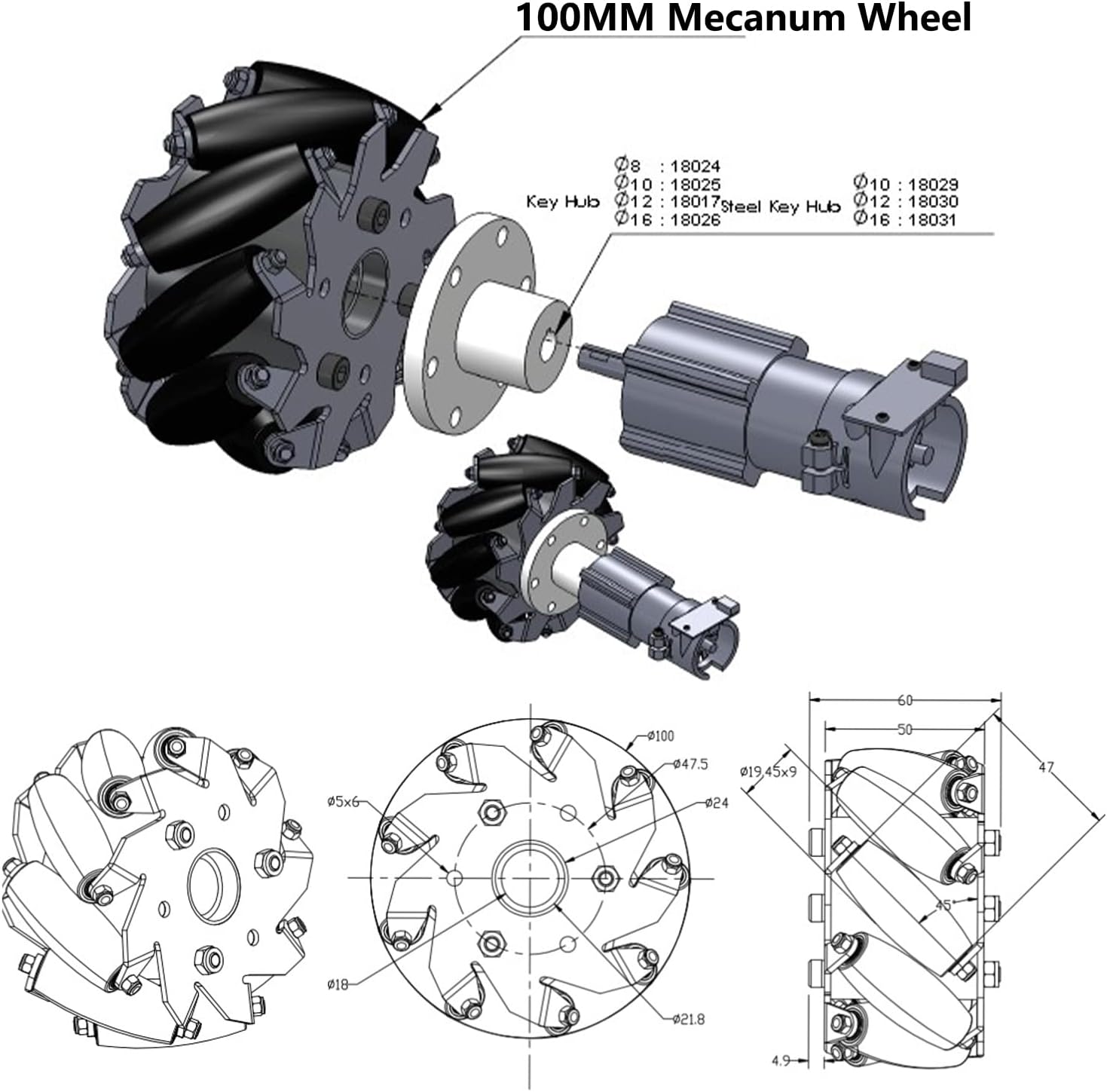

100mm Mecanum Wheel Parameters:
- Wheel diameter: 100mm/ 4inch
- Number of wheels: 4
- Weight: 400g × 4pcs
- Number of sub-wheels: 9
- Number of plates each wheel: 2
- Body material: Aluminum alloy
- Roller material: PP+PE
- Spacer Material: Nylon

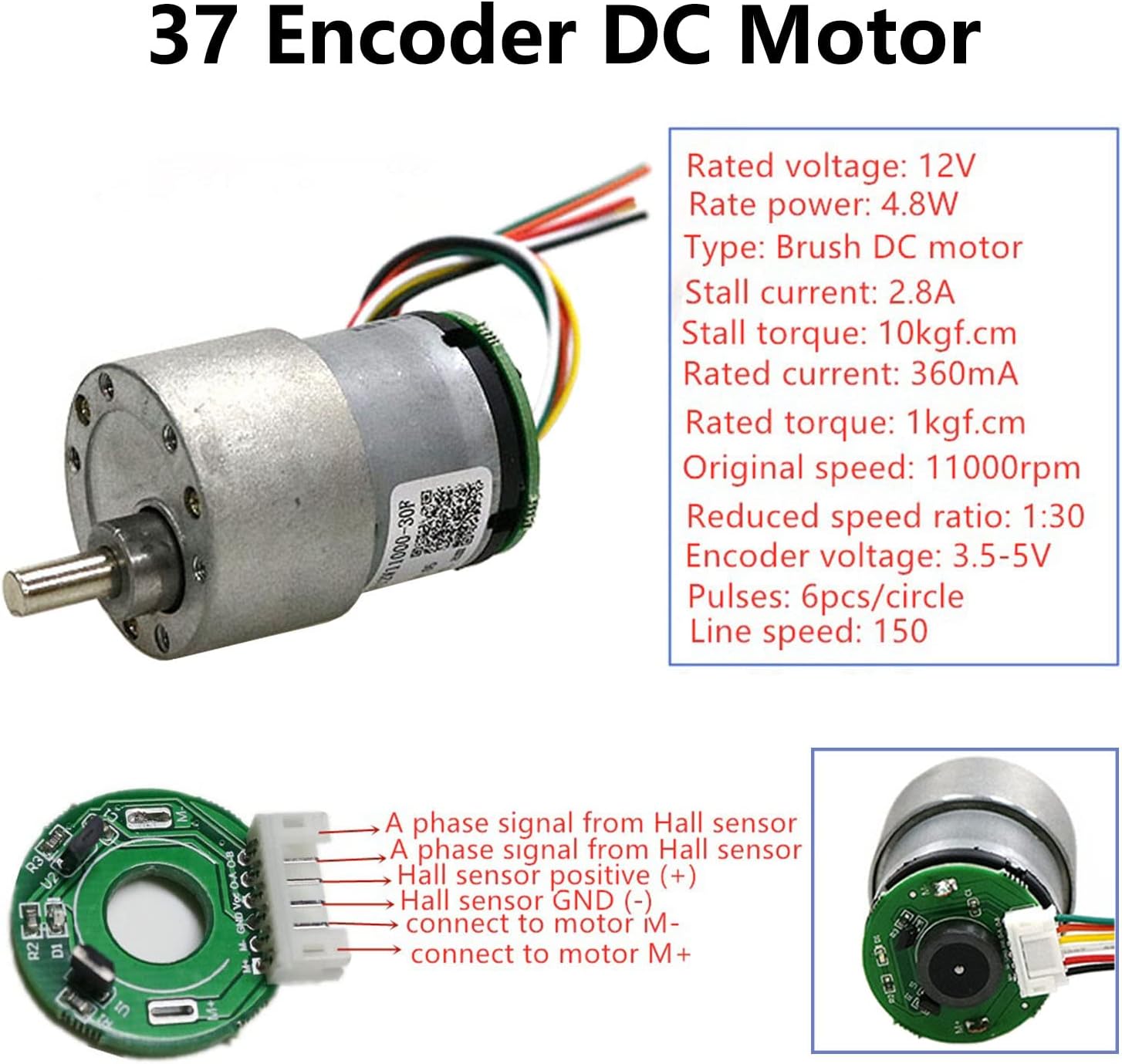

37 Encoder DC Motor Parameters:
- Rated voltage: 12V
- Rated power: 4.8W
- Motor type: permanent magnet brush
- Stall current: 2.8A
- Blocking torque: 10kgf.cm
- Rated current: 360mA
- Original speed: 11000rpm
- Speedup ratio: 1:30
Encoder Parameters:
- Type: AB phase incremental Hall encoder
- Line speed: 390 (measured with the output shaft of the reducer)
- Supply voltage: 5.0V
【You will Get】This MC600 mecanum metal car chassis kit includes 1 * metal panel, 4 * 100mm mecanum wheels with 4 * couplings for DC encoder motor, 4 * high torque 37 motors with encoders, 1 set screw kit. Size: 37*30.2*10cm / 14.6*11.9*3.9inch. We provide a simple manual to remind installation. The Arduino source code can be found in the manual.
【Mecanum Wheel Car Chassis Kit】This mecanum wheel moving platform is very suitable for the STEAM education. Many schools or education departments choose this car chassis for school student to learn AI robot knowledge. Also, this omni wheel car chassis can be used for the maker education kit, school robotic competition, and robotics learning. This omni wheel mecanum wheel car chassis is easy to assemble.
【Omnidirectional Wheel】This 4WD remote control car uses four mecanum tires and can move in all directions. In addition, it can drift and do 360° spinning. This remote control metal chassis car can easily pass through sand, grass, roads, rocky areas and other terrain. It is a robot platform suitable for off-road competition.
【37 Encoder DC Motor】Engine is very important for a car chassis. This smart robot car chassis is equipped with 4pcs high torque 37mm encoder DC motors. So you can get the speed states or other feedback.
【Metal Panel】This robotic chassis is made of 3mm thick aluminum alloy plate, which is very beautiful and solid. The surface is sandblasting oxidation, and has many installation holes, which can be compatible with services, Arduino UNO R3, NodeMCU, Raspberry pie. Also can use other controller kit. If have any problem, please don’t hesitate to contact us. We will get back to you within 24 hours.
